AIDA Imaging Full HD NDI®|HX/IP Weatherproof Cylinder POV Camera - Outdoor Live Streaming, Sports Events & Surveillance Solution
AIDA Imaging Full HD NDI®|HX/IP Weatherproof Cylinder POV Camera - Outdoor Live Streaming, Sports Events & Surveillance Solution
AIDA Imaging Full HD NDI®|HX/IP Weatherproof Cylinder POV Camera - Outdoor Live Streaming, Sports Events & Surveillance Solution
AIDA Imaging Full HD NDI®|HX/IP Weatherproof Cylinder POV Camera - Outdoor Live Streaming, Sports Events & Surveillance Solution
AIDA Imaging Full HD NDI®|HX/IP Weatherproof Cylinder POV Camera - Outdoor Live Streaming, Sports Events & Surveillance Solution

AIDA Imaging Full HD NDI®|HX/IP Weatherproof Cylinder POV Camera - Outdoor Live Streaming, Sports Events & Surveillance Solution

$217.25 $395 -45% OFF

Free shipping on all orders over $50

7-15 days international

25 people viewing this product right now!

30-day free returns

Secure checkout

80777506

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

Description

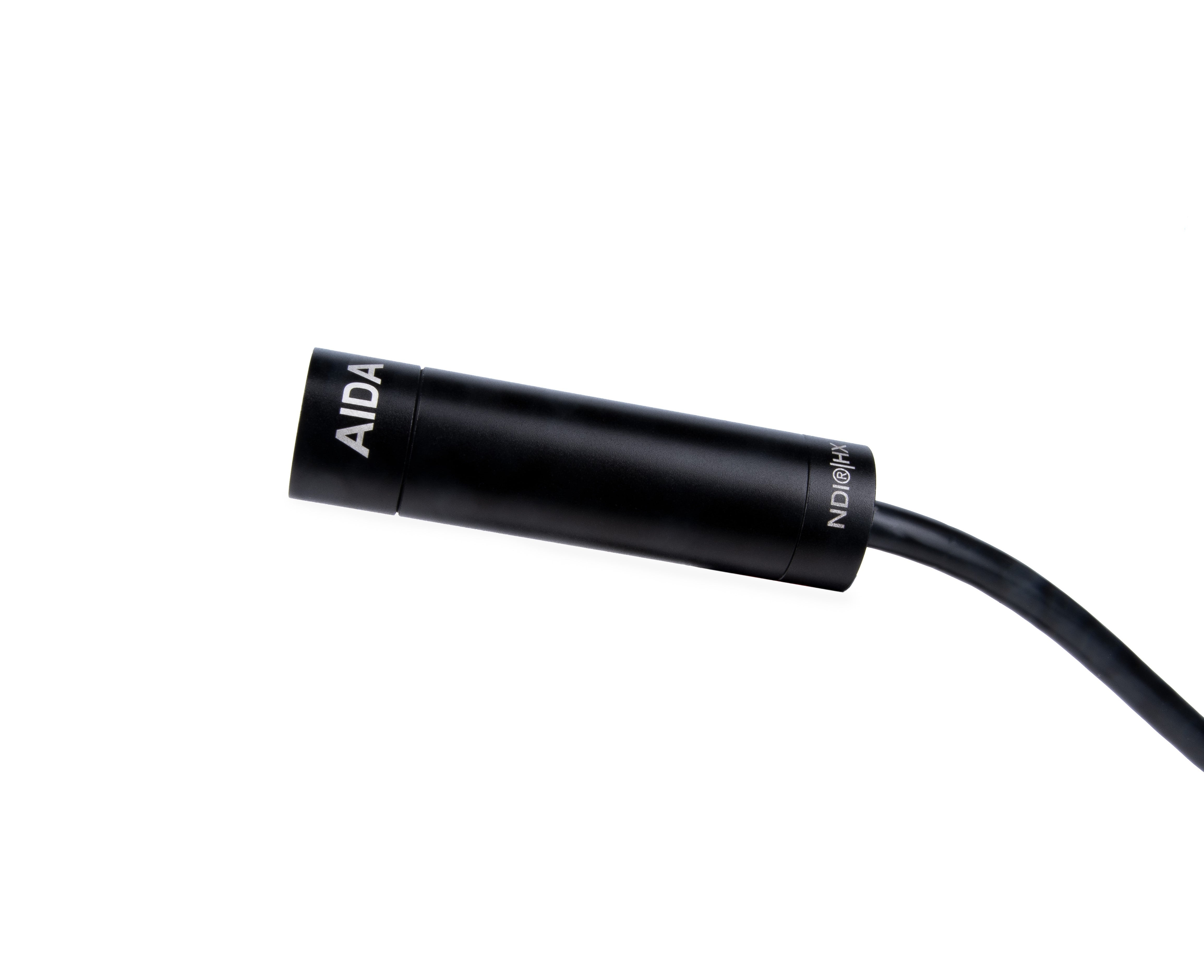

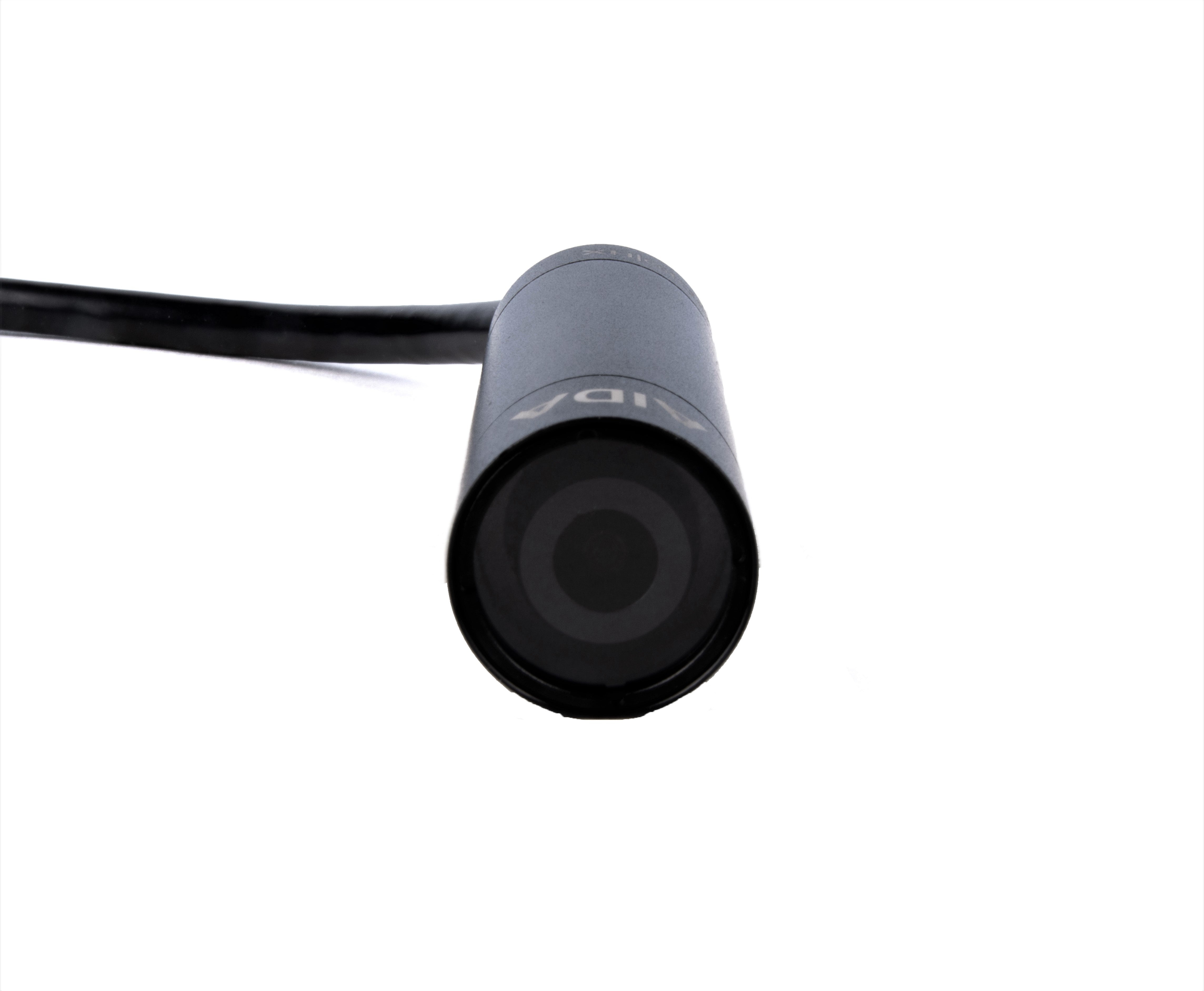

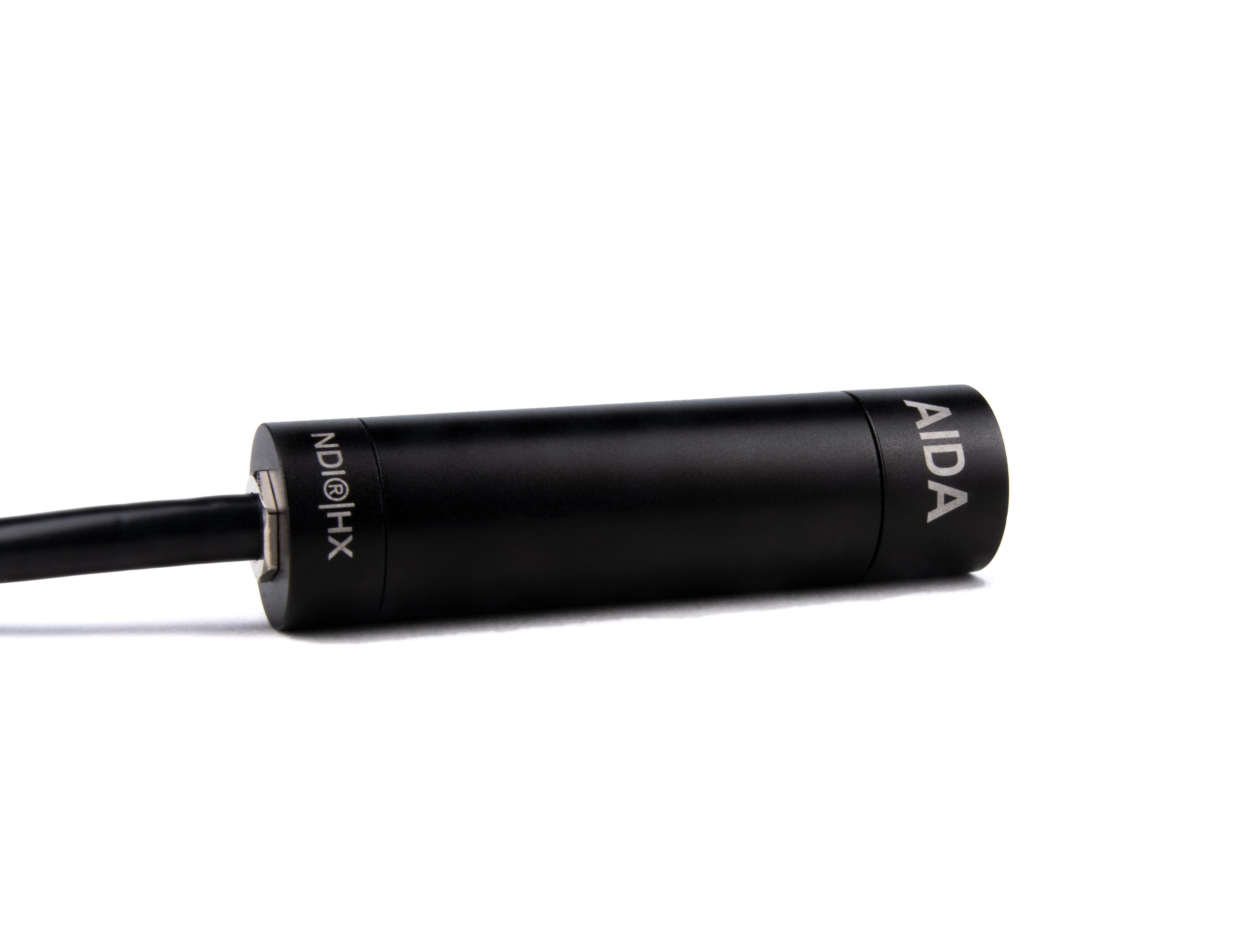

The most discreet NDI|HX camera has to be the AIDA Imaging Full HD NDI®|HX / IP Weatherproof Cylinder POV Camera. With its weatherproof barrel design, the HDNDI-MINI is protected where it is stashed. From the highs of rafters to the inside of pylons, the HD-NDI-MINI is the ultimate addition to any NDI workflow.

It's a lipstick-style camera that features IP and NDI|HX output into an ultracompact form for POV streaming applications in broadcast, education, medical, live production, and other fields. The camera features an M12 lens mount and a wide 4mm M12 lens is included.

FEATURES:

  • Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video
  • Accessible Web UI to stream directly to social media platforms and control image parameters over IP
  • The compact design used for discreet, hard-to-reach POV shots unobtainable by larger cameras
  • M12 type lens for an even smaller form factor
  • The weatherproof rating allows for extra protection against environmental elements
  • Barrel design for better weatherproofing and fitment
  • Perfectly suited for outdoor shots any new or existing NDI®|HX setup

SPECIFICATIONS:

Video

Image Sensor1/3” Progressive CMOS
Sensor Size
5.346mm x 3.003mm (16.9)
Effective Pixels
Horizontal: 1920, Vertical: 1080
Pixel Size2.75 μm (H) x 2.75 μm (V)
Resolution1080p, 1080i, 720p
Resolution Rate
1080 60p/59.94/50p/30p/29.97p/25p/24p
1080 60i/59.94i/50i
720 60p/59.94p/50p
Output
IP (NDI|HX/SRT/RTMP/RTSP)
Color Space4:2:2 (YCbCr) 10bit
Min Illumination0.2Lux (day), 0.1Lux (Night)
White Balance
Auto & Manual (9000 - 11,000 K)



Lens

LensM12 (Default 4mm HD Lens with WP CAP)



Standard

IP ProtocolUDP|IP, RTSP|RTMP, SRT, NDI|HX



Physical

Camera Control ProtocolVISCA Over IP
Operation Temp32 °F - 104 °F
Dimension90mm x 24mm / 3.5” x 0.94” (with default WP cap)
Weight180g / 0.39lbs (with default WP cap)
Power12VDC (+9 - +15VDC) (PoE Adapter Included)



WHAT'S INSIDE:

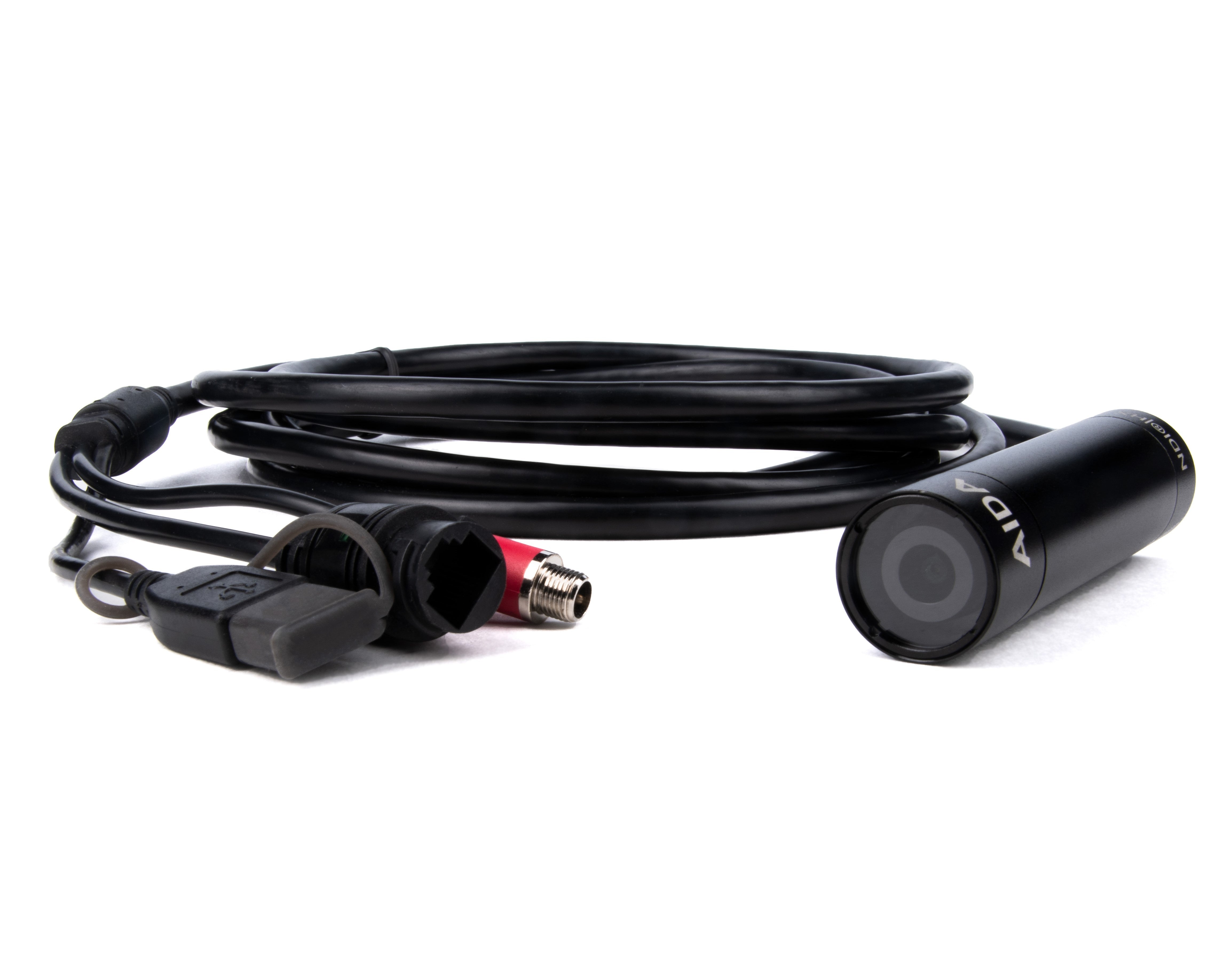

  • AIDA Imaging Full HD NDI HX IP Weatherproof Cylinder POV Camera
  • PoE Dongle Adapter
  • 12 VDC Power Supply with Plug Adapter Kit
  • 4mm M12 Lens
  • M12 Cap
  • Limited 2-Year Warranty
